G4 Primary Skeleton Filter | 50Pa Resistance Pre Filter for Particle Absorption
Our G4 Primary Skeleton Panel Filter is precision-engineered to absorb above 5μm particles with a certified 40% (Arrestance) efficiency. Built to meet the rigorous standards of clean air conditioning systems, this skeleton frame air filter balances a low resistance of 50Pa with a high air flow capacity. Whether for primary or medium filtration, its double-layer skeletons and 46mm/96mm thickness provide the structural integrity required for precise air quality control.
Product Key Features
- Accurate Efficiency: Rated as G3/G4 Efficiency (Class) for consistent 5 micron particle capture.
- Optimized Pressure: Operates at a stable initial resistance of 50Pa to ensure balanced system pressure.
- Rigid Internal Support: The galvanized steel skeleton prevents media fluttering and bypass.
- Versatile Specifications: Available in a range of dimensions from 295x295mm to 595x595mm.
Material & Craftsmanship
- Media: Specially treated pre filter media in white or blue.
- Skeleton: High-tensile Galvanized steel two layers’ skeletons.

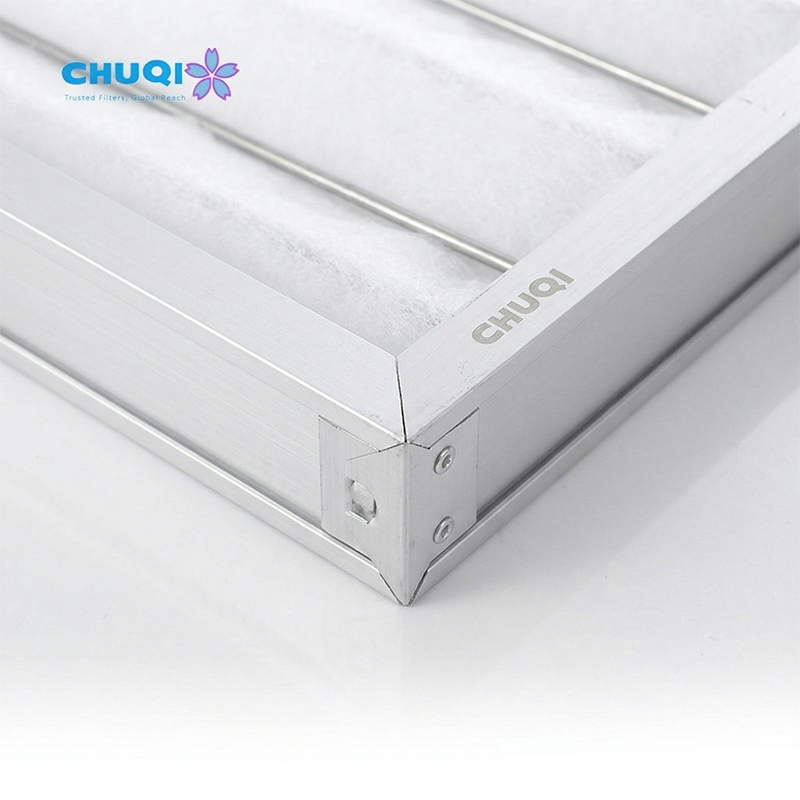

- Frame: Precision-fitted Aluminum / Galvanized steel sheet.
Applications
-
Hospital Ventilation: Provides reliable primary air filtration for healthcare air handling units, ensuring compliance with medical air quality standards.
-
Laboratory Air Intake: Acts as an essential pre-filter for maintaining controlled environments and protecting sensitive laboratory equipment from microscopic dust.
-
Clean Air Conditioning Systems: Specifically engineered to meet the rigorous standards of clean environments, balancing low resistance (50Pa) with high-efficiency particle capture.
-
Precision Manufacturing: Ideal for facilities requiring accurate 5 micron particle capture, utilizing the double-layer skeletons to ensure no air bypass during operation.
Competitive Comparison
| Feature | Chuqi G4 Precision Skeleton Filter | Standard Primary Filters | The Chuqi Advantage |
| Filtration Efficiency | G4 Efficiency; certified to capture 5μm particles.+1 | Often unrated or limited to large debris. |
Higher Purity: Provides superior pre-protection for downstream systems.+1
|
| Pressure Control | Maintains a stable initial resistance of 50Pa.+2 | Unstable resistance; affects system balance. |
System Stability: Ensures balanced air pressure and reduces energy loss.+1
|
| Internal Support | High-tensile Galvanized steel two layers’ skeletons.+1 | No internal support; prone to media fluttering. |
Zero Bypass: Prevents media deformation to ensure 100% filtration integrity.+1
|
| Sizing Options | Dimensions range from 295mm to 595mm.+1 | Limited standard sizes. |
Flexible Fit: Easily fits various specialized or non-standard HVAC slots.+1
|
| Structural Depth | Available in 46mm and 96mm industrial thicknesses.+1 | Usually restricted to 21mm slim profiles. |
Rugged Build: Provides the structural integrity required for precise air control.+1
|
Specifications
| External dimensions
(mm) |
Rated air volume
(m3/h) |
initial resistance
(Pa) |
Efficiency (Level)
(class) |
Filter media model
|
|
| 295 × 295 × 46mm | 1000m³ / h | 50Pa | 40%
( Weighing method )
|
G3
G4 |
Primary filter cotton
|
| 495 × 295 × 46mm | 1600m3/h | ||||
| 495×495×46mm | 2800m3/h | ||||
| 595×295×46mm | 2000m3/h | ||||
| 595×495×46mm | 3300m3/h | ||||
| 595×595×46mm | 4000m3/h | ||||
Superior Structural Rigidity & High Airflow Capacity

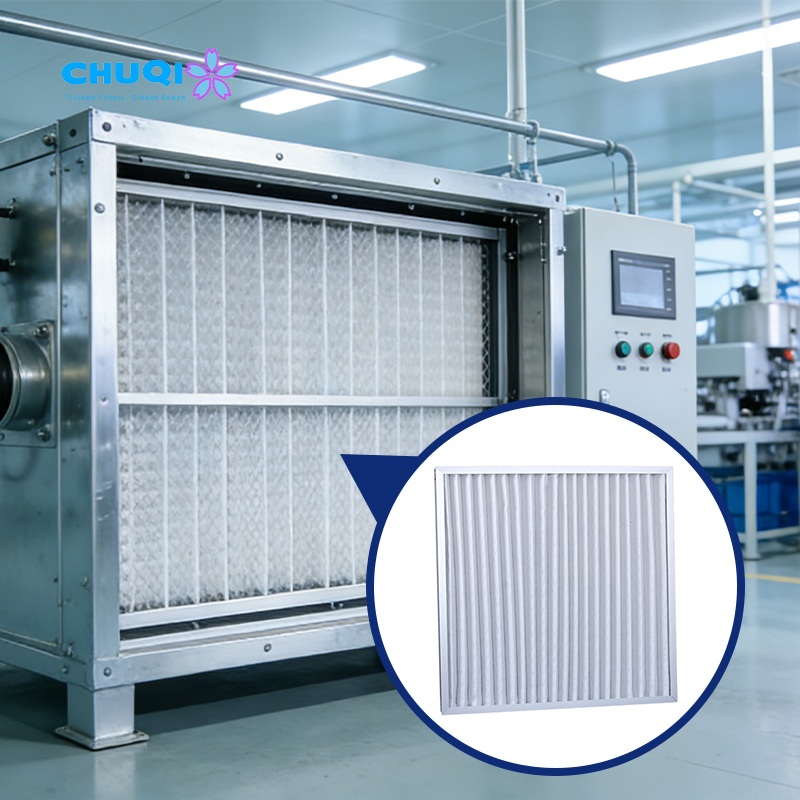

We specialize in developing filtration solutions with exceptional stability, featuring a unique two layers’ skeletons design made of galvanized steel. This robust internal support ensures that the filter media remains perfectly stable even under a high rated air flow of 4000m³/h. This heavy-duty construction makes our filters the definitive choice for large-scale industrial ventilation and demanding AHU units.
Frequently Asked Questions
Q1: What specific filtration standard does this G4 Skeleton Filter meet?
This filter is precision-engineered to absorb above 5μm particles with a certified 40% (Arrestance) efficiency, meeting the rigorous requirements for G4 Efficiency Class.
Q2: How does the “Double-Layer Skeleton” design benefit air quality control?
The high-tensile Galvanized steel skeletons provide a rigid internal cage that prevents the media from fluttering or collapsing under pressure. This ensures that all air passes through the media without any bypass, which is critical for laboratory and hospital air intake
Q3: Can this filter help maintain stable pressure in clean air conditioning systems?
Yes. It is designed to operate at a stable and low initial resistance of 50Pa. This optimized pressure drop ensures balanced system pressure while handling a high air flow capacity.
Q4: What frame materials are used to ensure durability in technical environments?
We use precision-fitted Aluminum or Galvanized steel sheet frames combined with high-quality pre-filter media. This construction provides the necessary structural integrity for clean air conditioning systems and medical facilities.
Q5: Is this filter available in custom dimensions for specialized AHUs?
Absolutely. We offer a versatile range of dimensions from 295x295mm to 595x595mm, with industrial-standard thicknesses of 46mm and 96mm, allowing for a perfect fit in various air handling units.
