H13 H14 HEPA Filter with Aluminum Separator | High Efficiency Terminal Air Filtration for Cleanrooms
Elevate your cleanroom standards with the Chuqi HEPA filter with separator. Engineered for superior terminal purification, this H13 H14 HEPA filter ensures a sterile environment by capturing 99.97% to 99.99% of particles at 0.3μm. Its precision deep-pleated design provides a massive surface area, making it the premier choice for demanding industrial HVAC systems and critical air supply vents.
Product Key Features
-
Efficiency Class: Available in H13, H14, and U15 grades, delivering up to 99.9995% efficiency for ultra-clean air.
-
Initial Resistance: Professionally engineered for low resistance (≤220Pa), significantly reducing energy costs in ventilation systems.
-
Operating Limits: Heat resistant up to 80°C and 80% humidity.
-
Testing Standards: Individually tested to meet 99.99% @ 0.3um and 99.9995% @ 0.12um technical standards.
Material & Craftsmanship
-
Filter Media: Premium fiber glass paper (H10-U15) for stable filtration.
-
Frame: Corrosion-resistant Aluminum alloy outer frame (125/152mm), Galvanized, or Stainless steel casing.
-

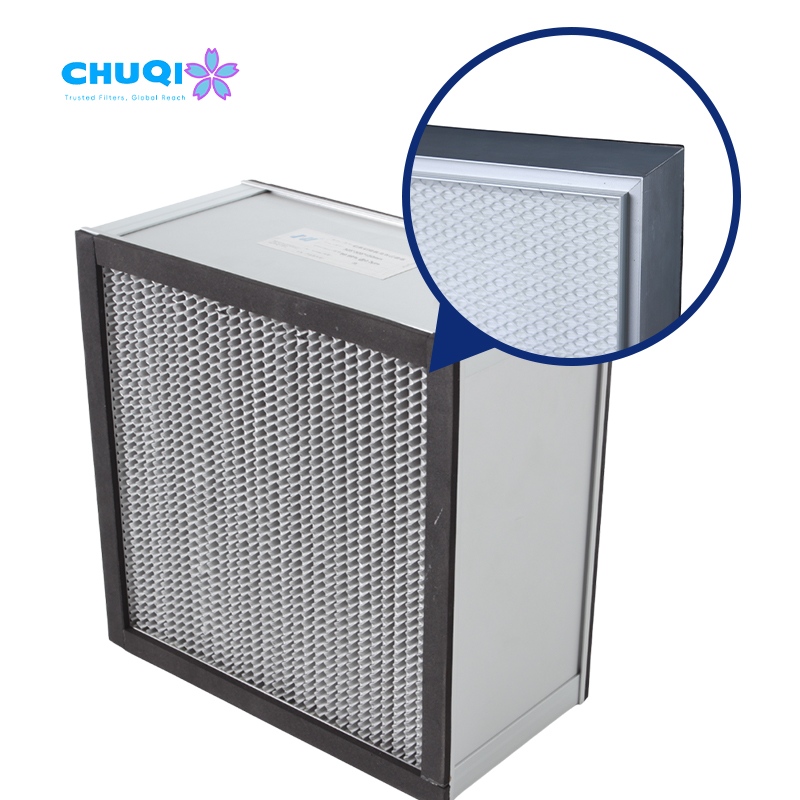

Separator: Precision Hot melt adhesive or corrugated Aluminum foil separators to maintain structural stability.
-
Sealant: High-performance Polyurethane adhesive ensuring a 100% leak-proof installation.
-
Gasket: Durable EVA gasket or acetate fiber sealing strips for airtight integrity.
Applications
-
Pharmaceutical & Biotech Manufacturing: Essential for GMP-certified cleanrooms (Class 100/1000) to ensure sterile drug production.
-
Medical & Hospital Sterile Zones: Applied in Operating Rooms, negative pressure wards, and dialysis units to prevent cross-infection.
-
Electronics SMT Lines: Protects Surface Mount Technology lines and wafer fabrication from airborne particles that cause circuit defects.
-
Precision Optical Laboratories: Ideal for aerospace and optical laboratories requiring ultra-clean air for lenses and fiber optics assembly.
-
Automotive Paint Spray Booths: Installed in the air supply of spray booths to ensure a flawless, particle-free finish.
-
Food & Beverage Processing: Used in bottling lines and dairy packaging zones to prevent microbial contamination.
Competitive Comparison
| Feature | Chuqi Separator HEPA Filter | Standard Mini-Pleat Filters | The Chuqi Advantage |
| Structural Integrity | Corrugated Aluminum Separators provide superior rigidity. | May deform under high pressure or high velocity. |
Longer Lifespan: Maintains shape in demanding industrial HVAC systems.
|
| Dust Capacity | Deep-pleated fiberglass media offers a massive surface area. | Limited pleat depth and lower holding capacity. |
Lower Maintenance: Reduces the frequency of filter replacements.
|
| Airflow Quality | Delivers good uniformity winds, preventing air turbulence. | Airflow can become turbulent at high velocities. |
Better Protection: Essential for laminar flow compatibility.
|
| Environment Resistance | Chemical & Oxidation resistant aluminum alloy frames. | Standard frames may corrode in humid zones. |
Reliability: Operates efficiently in high humidity (80% RH).
|
Specifications
| External dimensions
(mm) |
Rated air volume
(m³ / h) |
initial resistance
(Pa) |
Efficiency (colorimetric method)
(%) |
| 305 × 305 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 320 × 320 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 484×484×150/220/292 | 1000/1600/2000 | ≤220 | 95-99.9995 |
| 610×610×150/220/292 | 1600/2500/3200 | ≤220 | 95-99.9995 |
| 630×630×150/220/292 | 1700/2700/3400 | ≤220 | 95-99.9995 |
Chuqi Standard-Pro | High-Efficiency Mass Production HEPA Series
Chuqi maintains a robust and highly efficient supply chain, capable of delivering large-scale orders of H13/H14 HEPA filters with precision-engineered fiber glass paper and aluminum foil separators. We leverage automated production lines to ensure consistent quality and shorter lead times for major GMP-certified cleanroom projects. By optimizing raw material sourcing, we provide clients with a superior cost-performance ratio without compromising the stringent technical standards required for terminal air purification.
Frequently Asked Questions
Q: What is the benefit of using aluminum foil separators?
The precision-corrugated aluminum foil partitions maintain perfect pleat spacing, which ensures structural stability and good uniformity winds even under high-pressure conditions.
Q: Can this filter be used in high-humidity environments?
Yes, it features climate resilience to operate efficiently in high humidity (80% RH) without pleat collapse or efficiency loss.
Q: How do you guarantee the filter is leak-proof?
Each filter features a high-performance Polyurethane adhesive sealant and an airtight EVA gasket for a 100% leak-proof installation.
Q: What efficiency grades are available for this model?
We provide a range of grades including H13, H14, and U15, delivering certified filtration efficiency for ultra-clean air.
Q: Is this filter suitable for large-scale ventilation?
Absolutely. It is designed for large-scale HVAC systems, offering a large air flow capacity up to 3400m³/h.
