High Dust Capacity Fiberglass Floor Filter | Ecological Exhaust Air Filtration
Reduce your maintenance costs and environmental footprint with the Chuqi High Dust Holding Capacity Floor Filter. This ecological paint stop media is designed to maximize service life, holding up to 470g/m² of overspray. By using G3 and G4 grade fiberglass, it ensures that your exhaust air filtration meets strict environmental discharge standards, keeping both the inner circulating air and the outer environment clean.
Product Key Features
- Extended Service Life: Large dust holding capacity means fewer filter changes and lower operational costs.
- Eco-Friendly Filtration: A typical ecological material that makes paint-spraying more sustainable.
- Low Initial Resistance: Starts at just 10Pa to 20Pa, reducing the load on your ventilation fans.
- Laminar Airflow Support: Ensures air pressure more equally distributed across the floor for better painting results.
Material & Craftsmanship

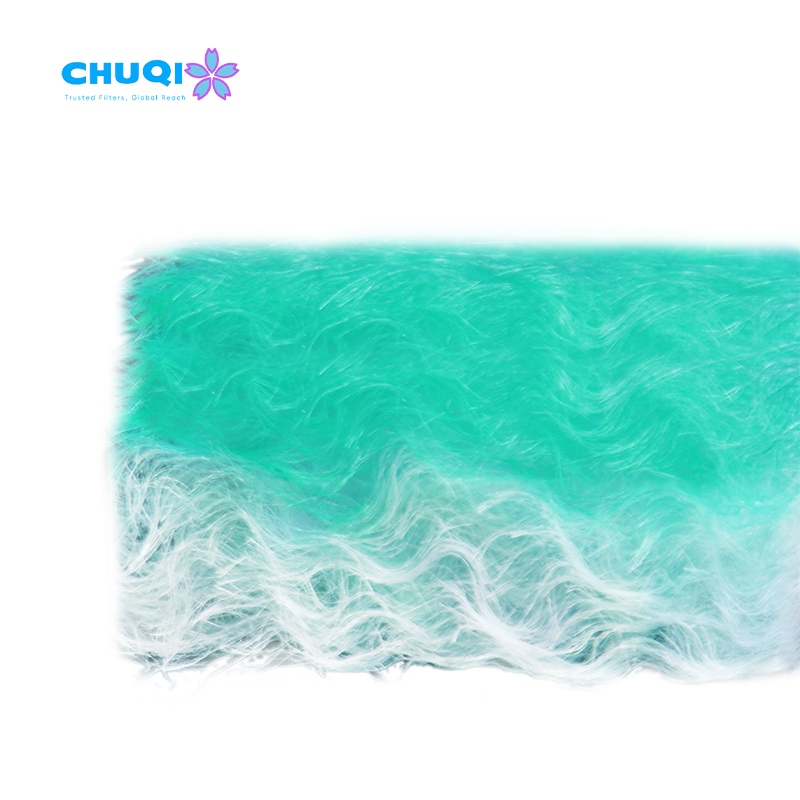

- Fiber Structure: Specially arranged glass fiber with low compressibility to maintain high porosity.
- Graded Layers: Available in 30mm to 100mm thickness to match specific filtration requirements.
- Color Coding: Standard Green and White for easy orientation and performance tracking.
Applications
- High-Volume 24/7 Coating Lines: Perfect for automated coating production lines with heavy, continuous paint usage where minimizing downtime is critical.
- Aseptic Coating Environments: Enhances the quality of surface painting by maintaining optimal booth pressure and laminar airflow.
- Governmental Environmental Projects: Helps factories comply with increasingly strict exhaust air pollution and emission regulations.
- Large-Scale Industrial Spray Booths: Ideal for facilities painting massive components where the volume of overspray requires a high-capacity fiberglass filter.
- Sustainable Manufacturing Plants: For companies aiming to reduce their environmental footprint through the use of typical ecological materials.
- Shipbuilding and Maritime Coating: Filtering heavy paint mist in large, open-ventilation spray areas to protect surrounding maritime environments.
Competitive Comparison
| Feature (特性) | Chuqi Eco-Flow | Standard Floor Filters | The Chuqi Advantage |
| Dust Holding Capacity |
Up to 470g/m². |
Typically 250g – 300g/m². |
Extended Life: Significantly fewer filter changes and lower labor costs. |
| Initial Resistance |
Ultra-low 10Pa to 20Pa. |
Often 30Pa – 50Pa. |
Energy Savings: Reduces the power load on your ventilation fans. |
| Filtration Grade |
G3 / G4 Grade Certification. |
Basic G2 or unrated media. |
Strict Compliance: Ensures exhaust meets environmental discharge standards. |
| Airflow Support |
Laminar Airflow Support. |
Prone to uneven pressure drops. |
Paint Quality: Ensures air pressure is equally distributed for better painting results. |
| Thickness Variety |
30mm to 100mm Options. |
Limited standard thickness. |
Custom Fit: Can be matched to specific airflow and filtration requirements. |
Specifications
| model | LH-200G | LH-260G | LH-280G | LH-320G |
| color | Green and white | Green and white | Green and white | Green and white |
| gram | 450G | 500G | 540G | 560G |
| Thickness (mm) | 30 | 60 | 80 | 100 |
| Filtering levels | G2 | G3 | G3 | G4 |
| highest job Temperature (°C) | 170 | 170 | 170 | 170 |
| Dust holding capacity | 360G/square meter | 385G/square meter | 400g/square meter | 470G/square |
Chuqi is a premier manufacturer specializing in high-performance fiberglass filter solutions that balance industrial productivity with environmental responsibility. Our factory utilizes a specialized gradual density fiber arrangement to create ecological paint stop media with an exceptional dust holding capacity of 470g/m². By maintaining an initial resistance as low as 10Pa and adhering to G3/G4 filtration grades, Chuqi ensures that our clients in high-volume coating lines achieve optimal surface painting quality while significantly reducing energy consumption and operational downtime.
Frequently Asked Questions
Q1: How does “High Dust Holding Capacity” save money for my factory?
With a capacity of 470g/m², our filters last longer between replacements, which reduces the cost of new media and the labor required for frequent maintenance.
Q2: Will this filter help our facility pass environmental inspections?
Yes. Our G3 and G4 grade fiberglass is specifically designed to meet exhaust air filtration standards, ensuring compliant emissions.
Q3: Does the low initial resistance affect the exhaust fan’s performance?
It actually improves it. Starting at just 10Pa to 20Pa reduces the energy load on your fans, leading to significant power savings.
Q4: Can I get this filter in a custom thickness for my specific booth?
Certainly. We offer a range from 30mm to 100mm thickness to match your specific airflow and filtration needs.
Q5: How does this filter support “Laminar Airflow” on the spray booth floor?
The structure ensures air pressure is more equally distributed, preventing turbulence that can ruin a professional surface painting finish.
