Low Resistance Pleated Medium Filter | F6-F8 HVAC Panel Filter for Energy Saving
Optimize your building’s ventilation performance with our Low Resistance Pleated Medium Filter. Specifically engineered for modern HVAC systems, this F6-F8 medium efficiency panel filter utilizes a high-surface-area pleat design to handle high air flow while maintaining a minimal pressure drop. It is the perfect choice for general air purification in commercial environments seeking to lower fan motor energy consumption.
Product Key Features
- Energy Efficient Profile: Engineered for low initial resistance (typically ≤120-200Pa), optimizing total system efficiency.
- High Dust Holding Capacity: The deep pleat structure provides a massive surface area to capture up to 1120g of dust, extending the service life between replacements.

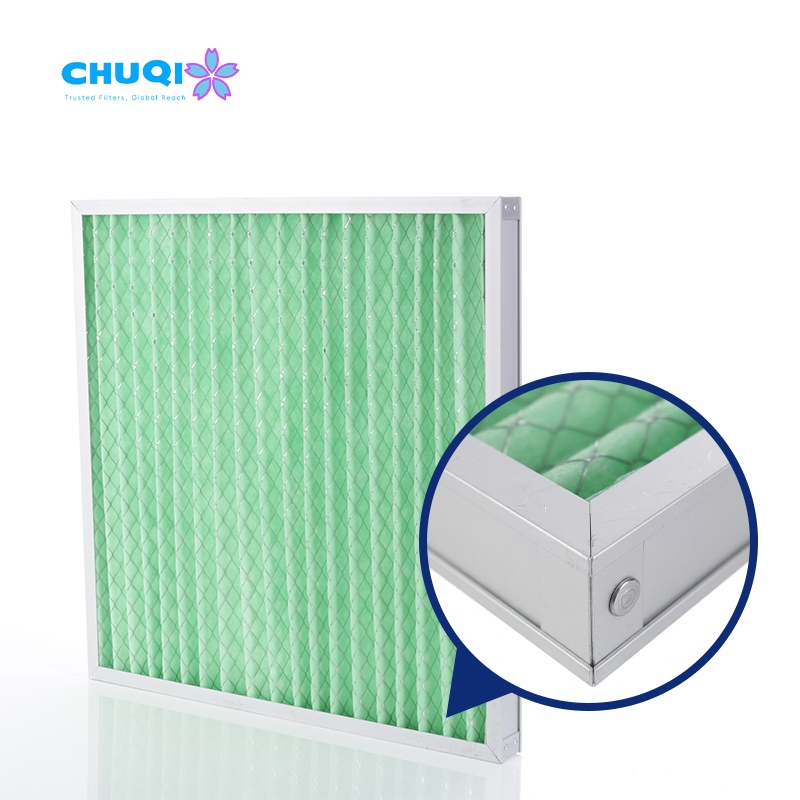

- Rigid Construction: Built with a reinforced aluminum alloy frame or galvanized steel to withstand high-velocity airflow.
Material & Craftsmanship
- Filter Media: Premium synthetic fiber or fiber glass paper media with gradient density for layered filtration.
- Frame Build: Durable Aluminum alloy (Anodized) for corrosion resistance and lightweight handling.
- Sealant: Secured with professional polyurethane sealant to ensure zero air bypass.
Applications
-
Commercial Ventilation Systems: Ideal for applied in air conditioning systems of airports, premium office towers, and large-scale shopping malls where high air quality and energy efficiency are paramount.
-
Industrial Air Intake: Acts as a reliable secondary filtration stage for centralized AHU units and general factory air purification, protecting sensitive downstream components.
-
Public Infrastructure: Optimized for high-traffic environments requiring general air purification to handle a high air flow without excessive energy draw.
-
Pre-filtration for HEPA Filters: Specifically engineered to serve as an efficient pre-filter, capturing larger particles to extend the service life of terminal HEPA filters in controlled environments.
-
Data Centers: Provides stable filtration with low initial resistance, ensuring critical server cooling systems remain dust-free while minimizing cooling-related power costs.
Competitive Comparison
| Feature | Chuqi Energy-Efficient Shield | Standard Pleated Filters | The Chuqi Advantage |
| Initial Resistance | Ultra-low (≤120-200Pa). | Often exceeds 250Pa at same flow. |
Energy Saving: Drastically reduces fan motor power consumption.
|
| Dust Capacity | Massive (Up to 1120g). | Typically 400g – 600g. |
Longer Life: Fewer replacements and reduced maintenance labor.
|
| Airtight Integrity | Polyurethane sealant (100% bond).+1 | Basic mechanical clamping. |
Zero Bypass: Ensures all air is filtered for superior purity.
|
| Frame Quality | Anodized Aluminum alloy. | Standard galvanized or plastic. |
Durability: Corrosion-resistant and lightweight for easy handling.
|
| Airflow Handling | Optimized for high air flow. | Prone to pleat deformation. |
Stability: Maintains shape and efficiency in high-velocity streams.
|
Specifications
| External dimensions
(mm) |
Rated air volume
(m3/h) |
initial resistance
(Pa) |
Efficiency (Level)
(class) |
Filter media model
|
|
| 295 × 295 × 46 mm | 1000m³ / h | 200-320 | F5-F9 | 45-98% | Non-woven fabrics and synthetic fibers |
| 495 × 295 × 46m | 1600m³ / h | ||||
| 495 × 495 × 46mm | 2800m3/h | ||||
| 595×295×46mm | 2000m3/h | ||||
| 595×495×46mm | 3300m3/h | ||||
| 595×595×46mm | 4000m3/h | ||||
Exceptional Energy Efficiency with Low Resistance Design
Chuqi specializes in Central air conditioning medium filtration, offering a Low resistance F6 nonwoven bag filter for energy saving and high-performance pleated solutions. Our Pleated Medium Filter is specifically engineered for modern HVAC systems, maintaining an ultra-low initial resistance (typically ≤120-200Pa) even under high air flow conditions. This precision engineering optimizes total system efficiency and significantly reduces fan motor power consumption.
Frequently Asked Questions
Q1: How does the “Low Resistance” design translate to actual energy savings?
-
Our Pleated Medium Filter is engineered for an initial resistance of typically ≤120-200Pa. By maintaining a minimal pressure drop, your HVAC fan motors don’t have to work as hard to push air through, leading to a significant reduction in total system energy consumption.
Q2: Will the filter media remain stable under high-velocity airflow?
-
Yes. The filter is built with a reinforced aluminum alloy frame or galvanized steel and secured with professional polyurethane sealant. This rigid construction is specifically designed to withstand high-velocity airflow without media bypass or deformation.
Q3: What is the benefit of the “Deep Pleat” structure?
-
The deep pleat design provides a massive surface area that can capture up to 1120g of dust. This high dust holding capacity significantly extends the interval between filter changes, offering an industry-leading long service life.
Q4: Can this filter be used in humid environments?
-
Absolutely. We use premium synthetic fiber or gradient density fiber glass paper media and durable anodized aluminum frames, which provide excellent resistance to moisture and corrosion.
Q5: Is this filter suitable for protecting terminal HEPA filters?
-
Yes, it is a perfect choice for secondary filtration. By efficiently capturing sub-micron and larger particles, it acts as a high-performance shield that extends the lifespan of expensive terminal HEPA filters in pharmaceutical or electronics sectors.
