Primary Skeleton Panel Filter | Two Layers’ Skeletons for High Air Flow HVAC
Engineered for high-demand ventilation, our Primary Skeleton Panel Filter features a robust two layers’ skeletons design made of galvanized steel. This unique internal skeleton support ensures the media remains stable even under a rated air flow of 4000m³/h. Specifically designed to absorb above 5μm particles, it is the ideal G3 / G4 efficiency stage for central air conditioning systems and large-scale industrial ventilation, maintaining a steady initial resistance of 50Pa.
Product Key Features
- Dual Skeleton Reinforcement: Built with two layers’ skeletons for maximum rigidity and long service life.
- High Air Flow Capacity: Capable of handling up to 4000m³/h, perfect for heavy-duty AHU units.
- Large Filter Area: Pleated design provides a large filter area to reduce pressure drop and energy costs.
- Industrial Durability: Available in 46mm and 96mm common thickness with an Aluminum or Galvanized frame.
Material & Craftsmanship
- Media: High-quality white or white and blue pre filter media.

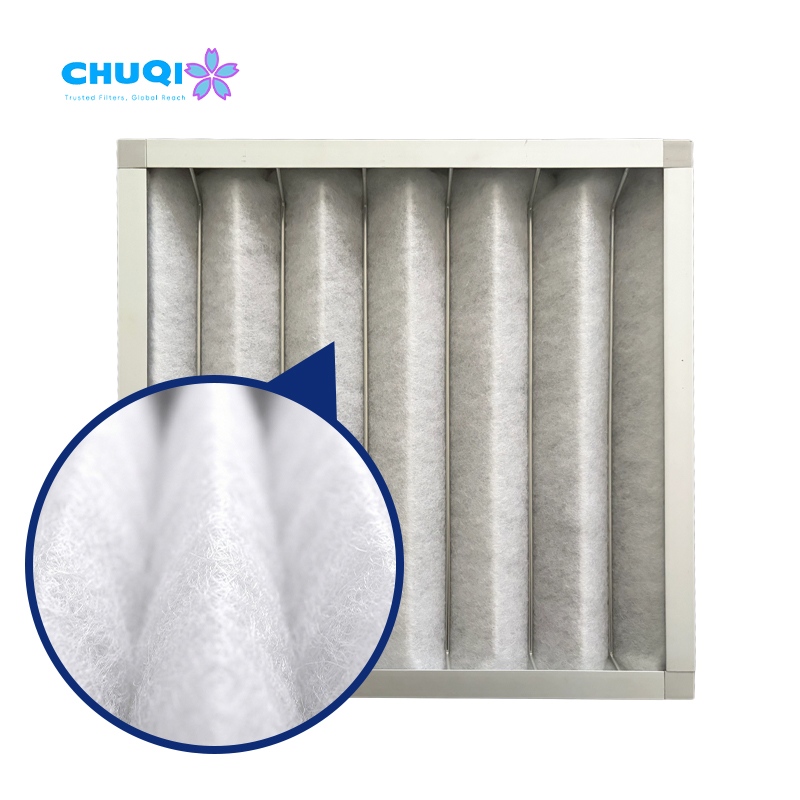

- Skeleton: Double-layer Galvanized steel wire for anti-deformation.
- Frame: Robust Aluminum / Galvanized steel sheet.
Applications
-

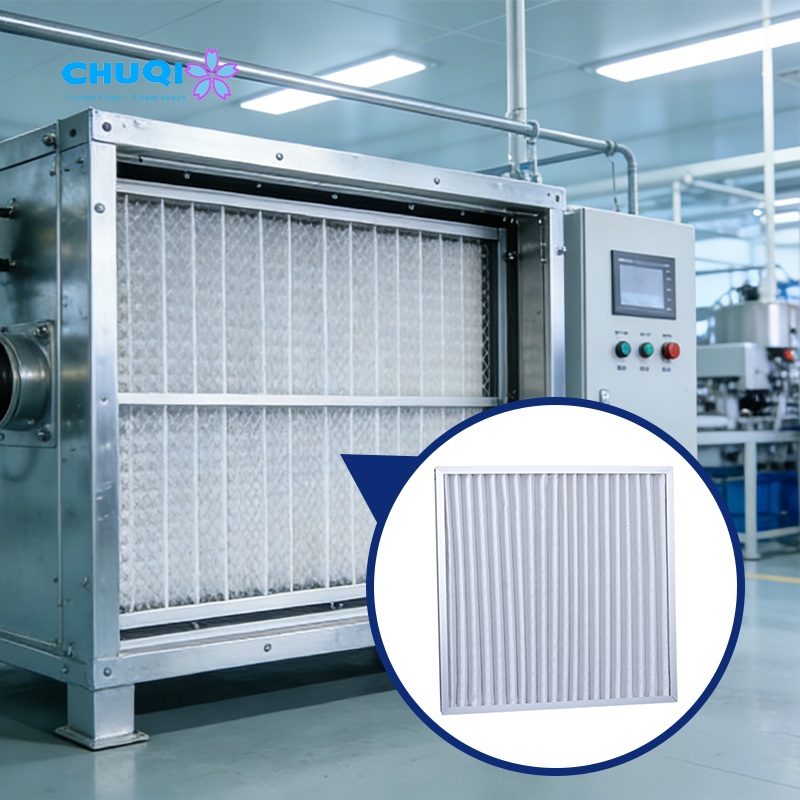

Commercial AHU Systems: The definitive skeleton type air filter for high-traffic environments such as shopping malls and office towers, where reliable performance is critical for large-scale air conditioning.
-
Heavy-Duty Industrial Intake: Acts as a rugged G4 primary filter designed for large-scale manufacturing plant ventilation, effectively protecting downstream high-efficiency systems from heavy particulate loads.
-
High-Velocity Ventilation Units: Specifically engineered for systems with a rated air flow of up to 4000m³/h, ensuring the filter media remains stable under intense air pressure.
-
Central Air Conditioning Systems: Provides an ideal G3/G4 efficiency stage for absorbing particles above 5μm in diverse industrial and commercial HVAC setups.
Competitive Comparison
| Feature | Chuqi Primary Skeleton Panel Filter | Standard Flat Panel Filters | The Chuqi Advantage |
| Structural Integrity | Two layers’ galvanized steel skeletons for maximum rigidity. | No internal support; prone to deformation. |
Anti-Deformation: Prevents media fluttering and bypass under high pressure.
|
| Airflow Capacity | Handles a high rated flow of 4000m³/h. | Usually limited to 3200m³/h or less. |
High Efficiency: Meets the demands of heavy-duty industrial AHU units.
|
| Filtration Area | Pleated design provides a large filter area. | Flat surface with limited area. |
Energy Savings: Reduces pressure drop and optimizes fan energy costs.
|
| Durability | Built with robust Aluminum or Galvanized frames. | Flimsy or lightweight frames. |
Long Service Life: Designed for long-term use in demanding environments.
|
| Pressure Stability | Maintains a steady initial resistance of 50Pa. | Resistance rises quickly as the frame bends. |
Consistent Airflow: Ensures balanced system pressure during operation.
|
Specifications
| External dimensions
(mm) |
Rated air volume
(m3/h) |
initial resistance
(Pa) |
Efficiency (Level)
(class) |
Filter media model
|
|
| 295 × 295 × 46mm | 1000m³ / h | 50Pa | 40%
( Weighing method )
|
G3
G4 |
Primary filter cotton
|
| 495 × 295 × 46mm | 1600m3/h | ||||
| 495×495×46mm | 2800m3/h | ||||
| 595×295×46mm | 2000m3/h | ||||
| 595×495×46mm | 3300m3/h | ||||
| 595×595×46mm | 4000m3/h | ||||
Sustainable Eco-Design & Flexible Customization
Chuqi is committed to providing environmentally friendly solutions through our washable and recycled skeleton filters, which offer a significantly long service life compared to disposable options. Leveraging our factory’s flexibility, we provide mass customization with various industrial thicknesses like 46mm and 96mm, and a wide range of dimensions from 295mm to 595mm. This ensures a perfect fit for diverse environments, including hospitals, laboratories, and cleanrooms.
Frequently Asked Questions
Q1: What makes the “Skeleton Type” filter different from a standard pre-filter?
-
The key difference is the two layers’ galvanized steel skeletons. This internal skeleton support provides maximum rigidity, ensuring the media stays perfectly in place even when subjected to a high air flow of 4000m³/h.
Q2: Can this filter handle large-scale industrial dust loads?
-
Yes. It is precision-engineered to absorb particles above 5μm with a certified G3/G4 efficiency. Its pleated design offers a large filter area, allowing it to manage high particulate loads while maintaining a low pressure drop.
Q3: Is the frame strong enough for heavy-duty AHU units?
-
Absolutely. We use a robust Aluminum or Galvanized steel sheet frame. When combined with the double-layer steel wire skeleton, it creates an anti-deformation cage that guarantees a long service life in industrial settings.
Q4: Will this filter help reduce my system’s energy consumption?
-
Yes. By maintaining a steady and low initial resistance of 50Pa, it allows your HVAC fans to operate more efficiently. The increased surface area from the pleats further helps in reducing overall energy costs.
Q5: What are the common sizes and thicknesses available for this model?
-
The most common industrial thicknesses are 46mm and 96mm. We also offer a range of standard dimensions, such as 595x595mm, or we can tailor the size to fit your specific system requirements.
